ZoneChargeElectric Bicycle Wireless Charging Solution employs coupled electromagnetic resonance wireless (contactless) charging technology, integrated with IoT, intelligent information networks, and other advanced technologies. It converts electrical energy into electromagnetic waves and uses the kickstand of the twowheeled electric vehicle as the receiver, enabling wireless charging for electric scooters/bicycles.

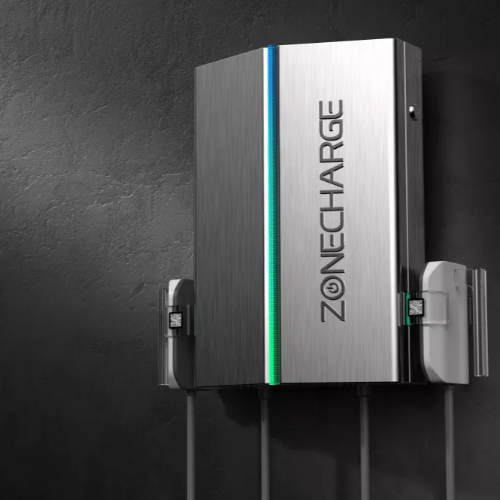

The transmitter unit is installed inside a cabinet, separate from the transmitting coil for easy replacement. The receiver unit is built into the vehicle, with the receiving coil integrated into the kickstand structure. When the ebike arrives at the charging area and the rider puts down the kickstand, the transmitter actively detects the presence and automatically initiates the charging process. Utilizing intelligent variablefrequency power control and onetomultiple technology, the charging current can reach up to 4 A. A single control cabinet can connect up to 10 transmitting posts, allowing multiple electric vehicles to charge simultaneously.

The engineeringgrade groundmounted transmitter can be seamlessly installed without occupying additional land resources, maximizing and rationalizing the layout of parking and charging stationsmaking the setup more discreet and aesthetically pleasing. The key advantage of this separated design is that only the transmitting coil needs to be laid out, greatly simplifying installation
