ZK12 Wireless Charging Power Module
Release time :
2026-07-21
Category :
Finished product
- Features
- Product Description
Specifications
| Function | Wireless charging |
|---|---|
| Type | High Power |
| Specifications | 75W |
| Color | Black |
| Brand | ZONECHARGE |
| Model | ZK12 |
Basic Information
| Place of Origin | China |
|---|---|
| Brand Name | ZONECHARGE |
| Certification | — |
| Model Number | — |
Payment & Shipping Terms
| Packaging Details | — |
|---|---|
| Delivery Time | — |
| Payment Terms | L/C, T/T, D/P, D/A |
| Supply Ability | — |

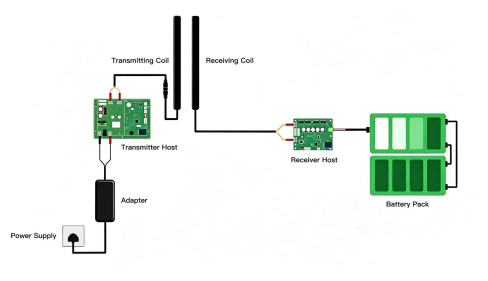

Model ZK12 is a medium power magnetic resonance wireless charging module, suitable for charging and standby power maintenance of electric tools, rail guided robots, AGVs, and other equipment in outdoor or humid/corrosive environments. The module offers contactless charging, no sparks, and corrosion resistance. The equipment can be installed inside a waterproof enclosure to achieve high level dust and water protection. The charging system supports autonomous docking and does not consume battery power – it can start charging even when the battery is in a low voltage shutdown state. It also features input/output over current, over voltage, over temperature, and other protection functions to ensure reliable operation.
Technical Specifications
| Model | ZK12-29.4V |
| Rated Power | 75W |
| Input Voltage | DC 28V~30V |
| Charging Voltage | 29.4V ±0.2(adjustable) |
| Output Current | 1.5~3A ±5%（25.2V）/1.5~2.5A ±5%（29.4V） |
| Charging Efficiency | 85% |
| Transmitter Host Size | Ø50 × 15 mm (input connector optional right angle pins) |
| Receiver Host Size | Ø50 × 15 mm (input connector optional right angle pins) |
