ZK16 Wireless Power Supply Module for Robots
Model ZK16 is a medium power magnetic resonance wireless power supply module with a low cost solution. It is suitable for power tools, track guided robots, AGVs, and other equipment requiring power maintenance in outdoor or humid, highly corrosive environments.
Release time :
2026-07-21
Category :
Finished product
- Features
- Product Description
Specifications
| Function | Wireless charging |
|---|---|
| Type | High Power |
| Specifications | 60W |
| Color | Black |
| Brand | ZONECHARGE |
| Model | ZK16 |
Basic Information
| Place of Origin | China |
|---|---|
| Brand Name | ZONECHARGE |
| Certification | — |
| Model Number | — |
Payment & Shipping Terms
| Packaging Details | — |
|---|---|
| Delivery Time | — |
| Payment Terms | L/C, T/T, D/P, D/A |
| Supply Ability | — |

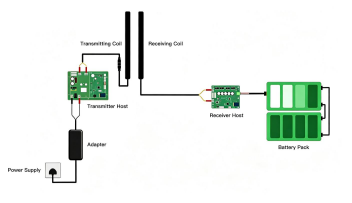

Model ZK16 is a medium power magnetic resonance wireless power supply module with a low cost solution. It is suitable for power tools, track guided robots, AGVs, and other equipment requiring power maintenance in outdoor or humid, highly corrosive environments. The product offers contactless power transfer, spark free operation, and corrosion resistance. The device can be housed inside a waterproof enclosure to achieve high grade dust and water protection. Moreover, the power supply system supports autonomous docking and incorporates protection features such as input/output overcurrent, overvoltage, and overtemperature protection to ensure reliable operation during use.
Technical Specifications
| Model | ZK16-24V/12V |
| Rated Power | 60W |
| Input Voltage | DC 24V |
| Charging Voltage | 24V/12V ±1 |
| Output Current | 2.5A |
| Charging Efficiency | 85% |
| Transmitter Host Size | 50*50*16mm |
| Receiver Host Size | 50*50*16mm |
