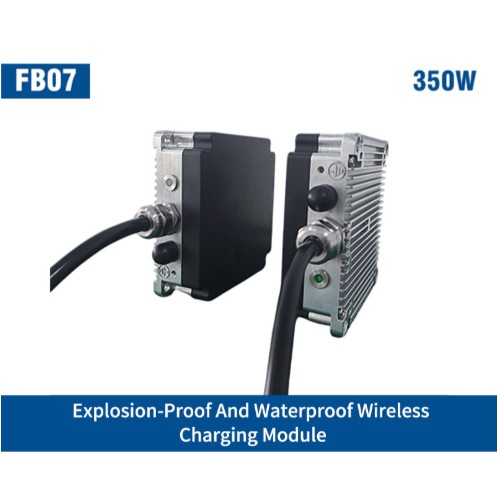

FB07 Compact Explosion-proof Wireless Charging Module
Release time :
2026-07-12
Category :
Finished product
- Features
- Product Description
Specifications
| Function | Wireless charging |
|---|---|
| Type | Medium Power |
| Specifications | 350W |
| Color | Black |
| Brand | ZONECHARGE |
| Model | FB07 |
Basic Information
| Place of Origin | China |
|---|---|
| Brand Name | ZONECHARGE |
| Certification | — |
| Model Number | — |
Payment & Shipping Terms
| Packaging Details | — |
|---|---|
| Delivery Time | — |
| Payment Terms | L/C, T/T, D/P, D/A |
| Supply Ability | — |
Model FB07 is a medium-to-high power magnetic resonance wireless charging module. It is designed for autonomous charging and standby power maintenance of automated equipment operating in oil and gas factories or dusty environments without human supervision. The product features contactless charging, no sparks, and corrosion resistance. It allows for a large tolerance in navigation docking, enabling "charge-and-go" functionality. The charging system supports autonomous docking without consuming battery power; it can initiate charging even when the battery is depleted and shut down. It includes protection functions such as input/output over-voltage, over-current, and over-temperature to ensure reliable operation.
Technical Specifications
| Model | FB07 |
| Rated Power | 350W |
| Input Voltage | 48V ±4% |
| Charging Voltage | (20-29.4V) ±0.2 |
| Output Current | 10A ±5%(If charging voltage < 22V, output current is 4A) |
| Charging Efficiency | > 88% |
| Transmitter Dimensions | 120*120*40mm |
| Receiver Dimensions | 120*120*40mm |
