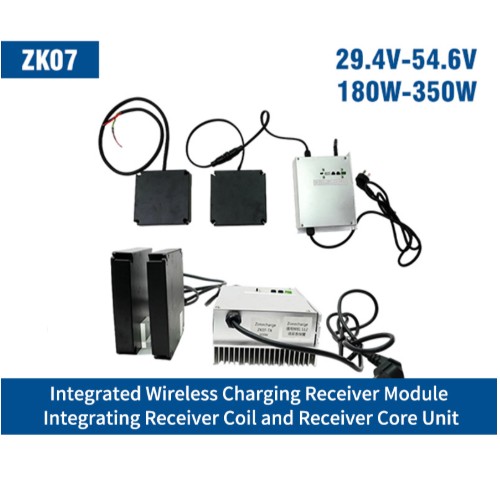

ZK07 Wireless Charging Power Module
- Features
- Product Description
Specifications
| Function | Wireless charging |
|---|---|
| Type | Low Power |
| Specifications | 150W-350W |
| Color | Black |
| Brand | ZONECHARGE |
| Model | ZK07 |
Basic Information
| Place of Origin | China |
|---|---|
| Brand Name | ZONECHARGE |
| Certification | — |
| Model Number | — |
Payment & Shipping Terms
| Packaging Details | — |
|---|---|
| Delivery Time | — |
| Payment Terms | L/C, T/T, D/P, D/A |
| Supply Ability | — |
Model ZK07 is a medium-to-high power magnetic resonance wireless charging module, suitable for autonomous charging and standby power maintenance of automated equipment such as indoor rail-type/free-moving inspection robots, AGVs, and new energy cleaning vehicles in unmanned scenarios. It offers advantages like contactless charging, no sparks, corrosion resistance, large tolerance for docking misalignment, and the ability to charge anytime. The charging system enables autonomous docking, does not consume battery power, and can initiate charging even when the battery is depleted and turned off. It includes protection features against input/output overcurrent, overvoltage, and overtemperature to ensure operational reliability. The receiving coil and control PCB are integrated into a compact plastic housing with high power density, allowing external installation without reserving internal space. The receiver is dustproof and waterproof.
Technical Specifications
| Model | ZK07-29.4V | ZK07-54.6V |
| Rated Power | 180W | 350W |
| Input Voltage | 220V ±15% | |
| Charging Voltage | 29.4V ±0.2V | 54.6V ±0.2V |
| Output Current | 5A ±5% | |
| Charging Efficiency | >85% | 88% |
| Transmitter Dimensions | 203*147*77.8mm | |
| Receiver Dimensions | 150×150×25mm (integrated coil & controller) | |
