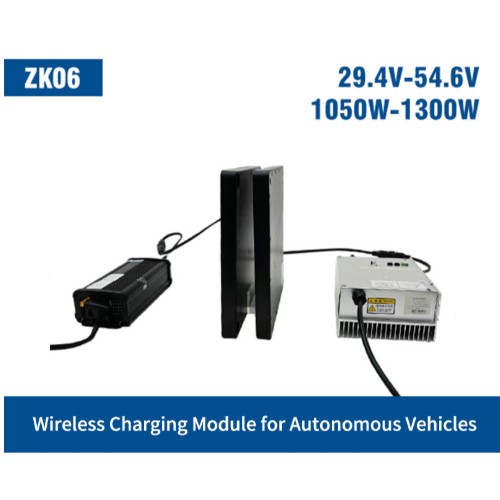

ZK06 1000W Wireless Charging Module
- Features
- Product Description
Specifications
| Function | Wireless charging |
|---|---|
| Type | Medium Power |
| Specifications | 650~1000W |
| Color | PCB |
| Brand | ZONECHARGE |
| Model | ZK06 |
Basic Information
| Place of Origin | China |
|---|---|
| Brand Name | ZONECHARGE |
| Certification | — |
| Model Number | — |
Payment & Shipping Terms
| Packaging Details | — |
|---|---|
| Delivery Time | — |
| Payment Terms | L/C, T/T, D/P, D/A |
| Supply Ability | — |
Model ZK06 is a medium-to-high power magnetic resonance wireless charging module, designed for autonomous charging and standby power maintenance of indoor track-type robots, free-ranging inspection robots, AGVs, new energy cleaning vehicles, and other automated equipment without human attendance. It features non-contact charging, no electric sparks, corrosion resistance, high docking tolerance for navigation, and instant plug-and-play capability. The charging system supports automatic docking without battery drain—charging can even start when the battery is fully depleted. It includes comprehensive protection functions such as input/output over-current, over-voltage, and over-temperature to ensure reliable operation.
Technical Specifications
| Model | ZK06-29.4V | ZK06-54.6V |
| Rated Power | 1050W | 1300W |
| Input Voltage | 220V ±15% | |
| Charging Voltage | 29.4V ±0.2 | 54.6V ±0.2 |
| Output Current | 30A ±5% | 20A ±5% |
| Charging Efficiency | 86% | 90% |
| Transmitter Dimensions | 203*147*77.8mm | |
| Receiver Dimensions | 225.8*100.96*60.2mm | |
